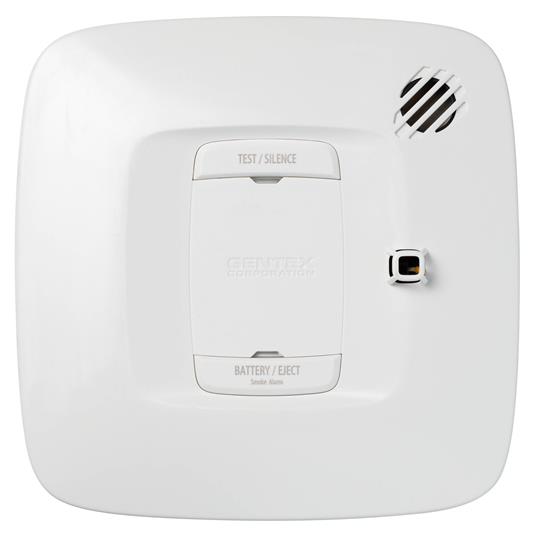

Gentex S Series SR Hard Wired Smoke Alarm with Relay
Engineered to virtually eliminate nuisance alarms & deliver outstanding performance wherever reliable fire protection is required. 9V battery back-up ensures continued operation during a power outage.
![](https://www.diglo.com/api/Product/GetImage?imageName=normal_GEN-S-SR_1_20240721132917485.jpg)
![Gentex S Series SR Hard Wired Smoke Alarm with Relay](https://www.diglo.com/api/Product/GetImage?imageName=normal_GEN-S-SR_1_20240721132917485.jpg)
Gentex S Series SR Hard Wired Smoke Alarm with Relay
Engineered to virtually eliminate nuisance alarms & deliver outstanding performance wherever reliable fire protection is required. 9V battery back-up ensures continued operation during a power outage.
SKU #GEN-S-SR BACKORDER
$130.00
QTY
Lowest price, guaranteed
- Overview
- Additional Details
- Accessories
- Q&A
- Customer Reviews
- Manual
The Gentex SR photoelectric smoke alarm with relay is engineered to virtually eliminate nuisance alarms and deliver outstanding performance wherever reliable fire protection is required. 9V alkaline battery back-up ensures continued operation even during a power outage. ANSI/UL 217, ANSI/UL 2034 and ANSI/UL 539 listed and warranted for one year from date of purchase.
Features:
- Listed to UL 217, 9th Edition
- Multi-Criteria smoke sensing including photoelectric light scattering sensing technology
- 10-year end-of-life indicator
- Temporal 3 evacuation signal pattern for smoke and heat annunciation
- 85 dBA evacuation horn piezo
- Horn frequency 3100Hz
- Nominal 2.5% sensitivity
- Programmable relay operation
- Relay operates on battery back-up
- 8-hour alarm memory
- Push button self-test
- Push button functional test
- Quick-disconnect wiring harness
- Interconnect with Gentex tandem capable smoke alarms
- Non-latching (self-restoring) alarm
- Pulsing LED sensing chamber
- Fully insect screened
- Mounting hardware adapts to standard junction boxes
- Dust cover to prevent contamination during installation
- Low or missing battery indicator
Feature | Details | |
---|---|---|
Brand | Gentex | |
Mfg part # | 917-0071-002 | |
UPC | 700217047002 | |
Warranty | 1 Year Warranty | |
Color | White | |
Item Dimensions | 5.5" x 5.5" x 1.75" | |
Weight (lbs) | 1.16 | |
Battery operated? | Yes (batteries optional) | |
Batteries included? | Yes | |
Battery details | 9V Battery | |
What's included? | (1) Gentex S Series SR Alarm, Mounting hardware, (1) 9V Battery | |
Country of Manufacture | United States | |
System | Gentex | |
Alert Type(s) Vibration Flashing Light Loud Audible Low Vision / Deaf-Blind | No No Yes No | |
Transmitter / Receiver | Transmitter(s) and Receiver(s) | |
Alert Trigger(s) Baby Cry Carbon Monoxide Mobile / Smartphone Doorbell / door knock Motion Pager / SOS Phone / VP Smoke / Fire Sound Severe Weather | No No No No No No No Yes No No | |
Expandable | Yes | |
Portable | No | |
Battery backup | Yes | |
USB charger | No |
