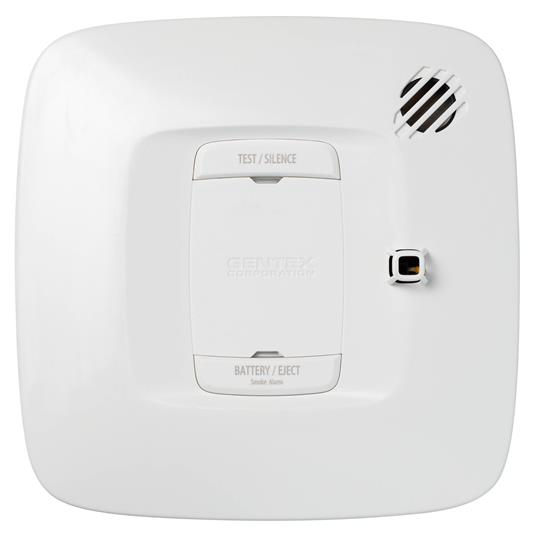

Gentex S Series SCR Hard Wired Smoke & Carbon Monoxide Alarm with Relay
Engineered to virtually eliminate nuisance alarms & deliver outstanding performance wherever reliable fire & carbon monoxide protection is required. 9V battery back-up ensures continued operation during a power outage.
Gentex S Series SCR Hard Wired Smoke & Carbon Monoxide Alarm with Relay
Engineered to virtually eliminate nuisance alarms & deliver outstanding performance wherever reliable fire & carbon monoxide protection is required. 9V battery back-up ensures continued operation during a power outage.
SKU #GEN-S-SCR IN STOCK
$175.00
QTY
Lowest price, guaranteed
- Overview
- Additional Details
- Accessories
- Q&A
- Customer Reviews
- Manual
The Gentex SCR photoelectric dual smoke & CO alarm with relay is engineered to virtually eliminate nuisance alarms and deliver outstanding performance wherever reliable fire & CO protection is required. 9V alkaline battery back-up ensures continued operation even during a power outage. ANSI/UL 217, ANSI/UL 2034 and ANSI/UL 539 listed and warranted for one year from date of purchase.
Features:
- Listed to UL 217, 9th Edition
- Multi-Criteria smoke sensing including photoelectric light scattering sensing technology
- Electrochemical CO sensor
- 10-year end-of-life indicator
- Temporal 3 (T3) evacuation signal pattern for smoke and heat annunciation
- Temporal 4 (T4) signal pattern for CO annunciation
- 85 dBA evacuation horn piezo
- Horn frequency 3100Hz
- Nominal 2.5% sensitivity
- Programmable relay operation
- Relay operates on battery back-up
- 8-hour alarm memory
- Push button self-test
- Push button functional test
- Quick-disconnect wiring harness
- Interconnect with Gentex tandem capable smoke alarms
- Non-latching (self-restoring) alarm
- Pulsing LED sensing chamber
- Fully insect screened
- Mounting hardware adapts to standard junction boxes
- Dust cover to prevent contamination during installation
- Low or missing battery indicator
| Feature | Details | |
|---|---|---|
| Brand | Gentex | |
| Mfg part # | 918-0032-002 | |
| UPC | 700217047149 | |
| Warranty | 1 Year Warranty | |
| Color | White | |
| Item Dimensions | 5.5" x 5.5" 1.75" | |
| Weight (lbs) | 1.2 | |
| Battery operated? | Yes (batteries optional) | |
| Batteries included? | Yes | |
| Battery details | 9V Battery | |
| What's included? | (1) Gentex S Series SCR Smoke/CO Alarm, Mounting hardware, (1) 9V Battery | |
| Country of Manufacture | United States | |
| System | Gentex | |
| Alert Type(s) Vibration Flashing Light Loud Audible Low Vision / Deaf-Blind | No No Yes No | |
| Transmitter / Receiver | Transmitter(s) and Receiver(s) | |
| Alert Trigger(s) Baby Cry Carbon Monoxide Mobile / Smartphone Doorbell / door knock Motion Pager / SOS Phone / VP Smoke / Fire Sound Severe Weather | No Yes No No No No No Yes No No | |
| Expandable | Yes | |
| Portable | No | |
| Battery backup | Yes | |
| USB charger | No |
